معلومات تفصيلية |
|||
| نموذج لا.: | VSF25-300~VSF60-1100 | عزم دوران مزدوج الفعل: | 830~226,400 نيوتن متر |
|---|---|---|---|
| عزم دوران عودة الربيع: | 307~71,753 نيوتن متر | الضغط الهوائي: | 3 ~ 8 بار |
| الضغط الهيدروليكي: | 100 بار | درجة الحرارة القياسية: | -20 درجة مئوية ~ 80 درجة مئوية |
| درجة حرارة منخفضة: | -40 درجة مئوية ~ 80 درجة مئوية | ارتفاع درجة الحرارة: | -20°C~150°C |
| مواد ختم: | نبر، هنبر، فيتون | عزم دوران الهواء: | 320 ~ 42517 نيوتن متر |
| عزم دوران الهواء: | 110 ~ 35559 نيوتن متر | عزم دوران نهاية الهواء: | 0 ~ 37801 نيوتن متر |
| عزم دوران بداية الربيع: | 789 ~ 112369 نيوتن متر | عزم دوران الربيع: | 402 ~ 57081 نيوتن متر |
| عزم دوران نهاية الربيع: | 506~71764 نيوتن متر | ||
| إبراز: | Oil & Gas Project Scotch Yoke Pneumatic Actuator,Ball Valves Spring Return Actuator,Heavy Duty Scotch Yoke Actuator,Ball Valves Spring Return Actuator,Heavy Duty Scotch Yoke Actuator |
||
منتوج وصف

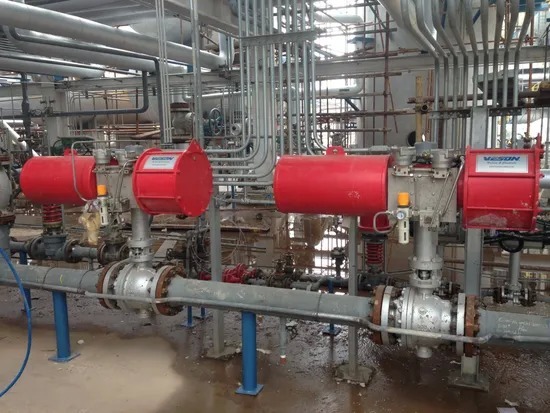

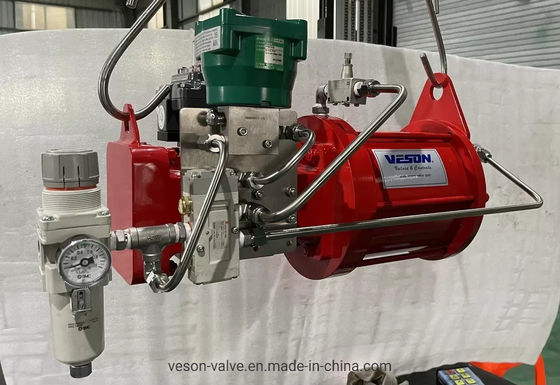

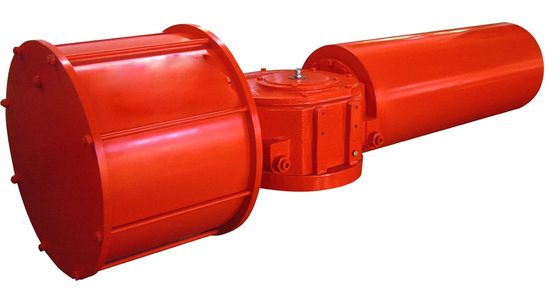

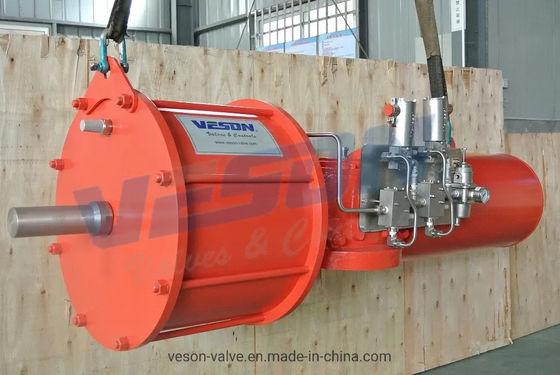

Scotch Yoke Pneumatic Actuator for Oil & Gas Project Ball Valves - Spring Return Heavy Duty Actuator
Performance Specifications
Torque Outputs (Guaranteed)
- Double acting: 830~226,400Nm
- Spring return end torques: 307~71,753Nm
Operating Pressures
- Pneumatic: 3~8 Bar
- Hydraulic: 100 Bar (over 100bar hydraulic pressure available upon request)
Operating Temperatures
- Standard: -20°C~80°C (NBR seal)
- Low Temperature: -40°C~80°C (HNBR seal)
- High Temperature: -20°C~150°C (Viton seal)
Key Features
- Versatile design for multiple applications
- High operational efficiency
- Enhanced safety features
- Superior corrosion resistance
- Highly sealed construction
- Extended service life
Manufacturing Advantages
| Professional technical team for advanced design | Quality control team ensures 100% product inspection |
| Own factory with competitive pricing | Globally accepted products |
| Direct import/export capabilities | High quality materials and production equipment |
| Efficient sales team and customer service | CE and ISO certified products |
Operating Principles
Single Acting Actuator (Spring Return)
CCW: Air to port A forces pistons outwards, compressing springs and turning pinion counterclockwise. Air exhausts from port B. On pressure loss, springs return pistons, turning pinion clockwise.
CW: Air to port B forces pistons outwards, compressing springs and turning pinion counterclockwise. Air exhausts from port B. On pressure loss, springs return pistons, turning pinion clockwise.
Double Acting Actuator
CCW: Air to Port A forces pistons outwards, turning pinion counterclockwise while air exhausts from Port B.
CW: Air to Port B forces pistons inwards, turning pinion clockwise while air exhausts from Port A.
Technical Specifications Table
| Model | Spring torque | Air torque | ||
|---|---|---|---|---|
| VSF14-200SR5 | 789 | 320 | 110 | 47 |
AST - Air start torque - Spring start torque
ART - Air run torque SRT - Spring run torque
AET - Air end torque SET - Spring end torque
ART - Air run torque SRT - Spring run torque
AET - Air end torque SET - Spring end torque
Additional Details
Warranty & Quality
- 1 year warranty
- 100% quality guarantee
- All items in new condition with OEM/original packaging
Packaging & Payment
- Custom packaging available
- MOQ: Customer design
- Payment methods: T/T, Western Union
- 30% deposit, 70% balance before shipment
